SPECIFICATIONS

Brand Name: EACHINE
Certification: None
For Vehicle Type: Helicopters
Four-wheel Drive Attributes: Assemblage
High-concerned chemical: None
Is Batteries Included: No
Is Electric: No Battery
Is it battery/power supply: N
Is it charger/adapter: N
Material: Plastic
Model Number: Eachine EV800
Origin: Mainland China
Quantity: 1 pcs
RC Parts & Accs: RECEIVERS
Recommend Age: 14+y
Remote Control Peripherals/Devices: RECEIVERS
Size: as show
Technical parameters: Value 5
Tool Supplies: Tools
Use: Vehicles & Remote Control Toys











Note:
1.The goggles only receive 5.8Ghz analog signals
2.The goggles upgraded version with the face sponge and  AV IN function . The Headphone jack was changed to 3.5mm. The total weigh reduction of 26g.

Specification
Brand name
Eachine
Item No.
EV800
Screen

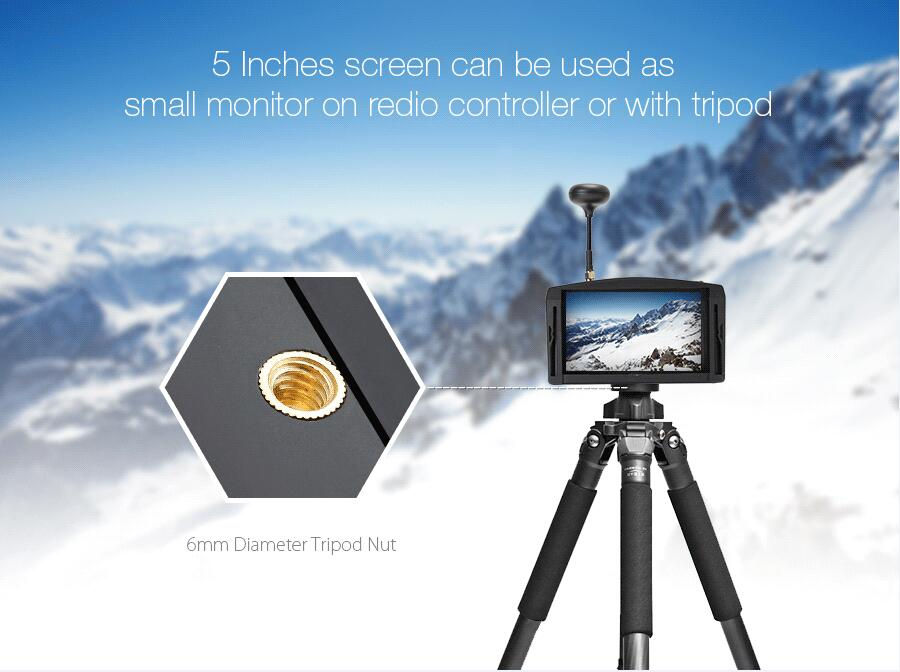

 Screen size: 5.0 inch
 Screen resolution: 800*480 (No blur after enlarge by the lens)
 Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
 View Angle: 140/120 degree(Horizontal/Vertical)
Lens

 3x boost of the video to acquire intense feel-in-there video;
 92% transparent rate no distort of light;
Battery and recharge

 Built-in 3.7V/2000mAh battery;
 Each battery circle offer around 3.5hr working time;
 5-12V wide recharging voltage range, typical recharging voltage is 5V
 Accepts 5V power banks or 2S(7.4V)/3S(11.1V) battery as back-up power to have long working time
Receiver

Build in 5.8G 40CH Raceband receive

                                                  Frequency Table
Frequency Band A
5865
5845
5825
5805
5785
